Our factory

AquaSust, a leader in water treatment solutions, has 20+ years of experience. We innovate through partnerships with top Chinese universities, exploring cutting - edge water treatment tech. Our 21,000㎡tube settler factory, a sector benchmark, houses 15 advanced production lines. This powerful productivity gives us the muscle to meet any project need. We also offer full - service support, from product selection and design to OEM production. With professional capabilities and remarkable productivity, AquaSust is always your go - to partner for all water treatment projects.



Why Choose Our Tube Settler
  • More Corrosion Resistant: increased UV protection
  • Rich Colors: blue, white, black
  • 40-75° Angle of Inclination: larger effective settling area
  • Multiple Material: can be made of PC, PP and PVC materials
  • Available Sizes: 25mm, 35mm, 50mm, 80mm
  • Uniform Thickness: from thermoforming and extrusion technology
page-1-1


Manufacturing Facilities That We Have

The tube settler production line consists of extruder, cutting machine and so on. They mold, cut and assemble the tube settlers in sequence as follows:

Plastic Extruder

1

Plastic Extruder

This machine is used to manufacture the slanted pipe section of a pipe sinker. It heats and melts plastic granules and extrudes them through a specific shaped die. With it, we can produce slant pipes of various shapes, sizes and wall thicknesses.

Pipe Cutting Equipment

2

Pipe Cutting Equipment

Cutting machines cut continuously extruded pipes to a predetermined length with flat edges. The neatly cut edges reduce the gaps between the inclined pipes, resulting in improved settling efficiency.

Plastic Welding Machine

3

Plastic Welding Machine

Welding equipment makes firm connection between the inclined pipesuse, through hot plate welding, ultrasonic welding, etc. This helps to reduce the chances of the inclined pipe falling off in use.

Cleaning Machine

4

Cleaning Machine

We clean the processed pipe by spray cleaning and ultrasonic cleaning to completely remove the pollutants on its internal and external surfaces. This facilitates subsequent processing and assembly operations.



Production Process And Technology

The production process of sludge dewatering machine usually inc

Step 1: Mixing Material
01
Step 1: Mixing Material


Add different raw materials (such as PVC, PP, HDPE, etc.) into the mixing container according to the calculated proportions. This ensures that the extrusion process can be carried out more smoothly and reduce surface defects caused by uneven raw materials.

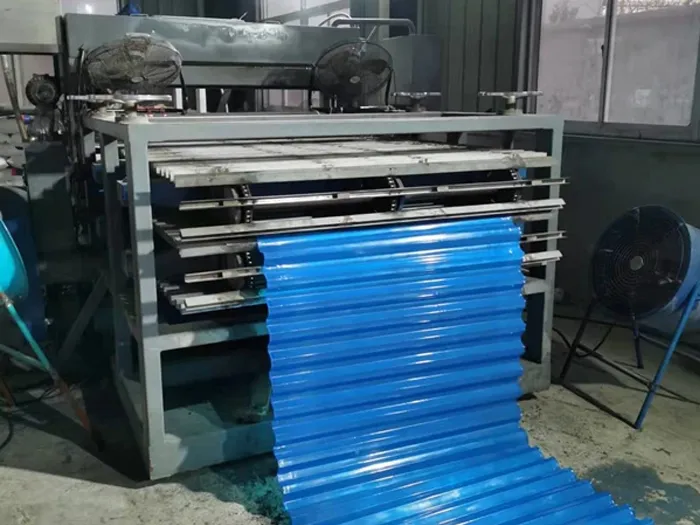

Step 2: Extrusion Molding
02
Step 2: Extrusion Molding


The proportioned plastic pellets are poured into the extruder and melted by heating. Then, with the push of the screw to extrude them through the mold to form continuous pipes.

Steel Cutting Stage
03
Step 3: Pipe Size Calibratio


The extruded pipes are cut into predetermined lengths by a cutting machine. Then, we use calipers to measure the outer diameter, inner diameter and length of the pipes. Pipes that do not meet the standards should be marked and recycled for reprocessing.

Steel Cutting Stage
04
Step 4: Assembly Molding


Prepare the cut pipes and their matching components (such as end plates and support structures). On the assembly workbench, position each component for assembly.

Step 5: Pipe Connectio
05
Step 5: Pipe Connectio


This refers to using plastic hot welding equipment to connect the pipes and other components together to form the basic framework of the tube settler.






Considerations In Tube Settlers Production

The configuration of the tube settler affects the efficiency of the water treatment project. When making it, we need to consider:

01

Tube Dimensions

Tube settlers usually have a rectangular or hexagonal cross section. The sizes of these tubes usually vary, ranging from 600 to 1200 mm in diameter.

02

Inclination And Spacing

The tubes are installed at an inclined angle to facilitate the settling of solids. Common angles for these tubes are between 40 and 60 degrees relative to the horizontal. In addition, the spacing of the tubes affects flow distribution and clogging, with 2.5 cm (1 inch) being a good choice.

03

Materials

The material of the tube settler must be able to withstand the chemical corrosion and physical impact of the wastewater. Polyvinyl chloride (PVC) and polypropylene (PP) are the most common material choices.

page-1-1


How We Ensure The Quality Of Tube Settlers?



Production Process Control
  • Temperature: It generally ranges from 80 to 300 degrees Celsius. It affects the viscosity and cooling time of the molten plastic.
  • Pressure: Pressure is responsible for controlling the flow rate of the material.
  • Time: The main thing here is the cooling time of the plastic. It determines whether the plastic is properly solidified.

First Piece Inspection

After each batch of tube settlers is completed, we conduct quality inspections on them from external defects to internal structural damage and performance indicators.


Dynamic Process Monitoring

AQuaSust uses an online monitoring system to extract product samples at high frequency and compare them with the finished product standards to ensure that the produced tube settlers continue to meet the standards.


Equipment Operation

We regularly calibrate equipment pressure sensors, temperature controllers, etc. By controlling the parameter deviation within ±0.1%, they follow the instructions and produce pipes with highly uniform length and wall thickness.


Finished Product Acceptance

After production is completed, workers conduct a comprehensive inspection of the finished product, including appearance, size, and performance. Then we pack it with shockproof materials and boxes and wait for transportation.




Manufacturing Facilities That We Have

The tube settler production line consists of extruder, cutting machine and so on. They mold, cut and assemble the tube settlers in sequence as follows:

We are proud of our manufacturing capabilities. Over 200 high-speed extrusion and injection lines enable us to always deliver your tube settler on time.

In addition, we offer a complete solution for tube sinkers to all our customers. This includes mold development, ODM and OEM manufacturing, and even repeat production of your specific injection molded parts.

Please feel free to contact us to learn more about tube settlers and how we can help you and your business!
