Inclined Tube Settler Media

Inclined Tube Settler Media Manufacturer-PP&PVC丨Aquasust

Top-Quality PP & PVC Tube Settler for Water & Wastewater Treatment— Increase Your Clarifier Capacity 2–4x with Minimal Footprint

Aquasust specializes in the design and production of premium 100% virgin PP or PVC inclined tube settlers, engineered for sand removal at the inlet of drainage projects and efficient solid-liquid separation in general industry and domestic water supply, such as sedimentation, sewage sedimentation, oil separation, and tailings concentration treatment.

We provide complete tube settler system solutions for new projects or the renovation of existing projects, including technical support and customized engineering for optimal performance.

Up to 140 m²/m³ specific surface area — maximize settling in minimum space
96–97% voidage — minimal clogging, low maintenance downtime
60° incline design — optimal sludge sliding, self-cleaning effect
Heat-welded joints, no adhesive — superior structural integrity under load
100% virgin PP or PVC — no recycled material, consistent quality
UV-resistant formulation — suitable for open-air outdoor installations
Complies with FDA & NSF standards — approved for potable water use
5–10 year service life — lowest total cost of ownership
2-year product quality guarantee

Tube Settler Specifications — Choose the Right Model for Your Application

Model	Best for	Material	Surface Area	Voidage	Quantity	Wall thickness	Weight	Install Angle
Model	Best for	Material	(㎡/m³)	%	(pcs/㎡)	(mm)	(kg/㎡)	Install Angle
AS-35	Harsh industrial wastewater — chemical processing, metal plating, mining. Highest surface area (140 m²/m³) for maximum settling capacity.	PP/PVC with UV resistance	140	96	40	0.4	18	60°

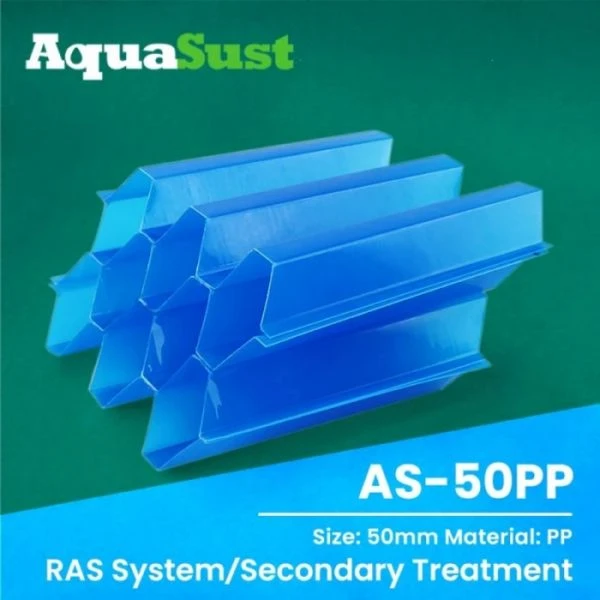

AS-50	Municipal & industrial plants with space constraints. Lowest operating cost — reduces energy, chemical, and maintenance spend.	PP/PVC with UV resistance	100	97	30	0.5	15	60°
AS-80	Compact treatment systems — municipal sewage, drinking water pretreatment. Modular design with no moving parts for easy installation.	PP/PVC with UV resistance	62	93	20	0.7	15	60°

PP or PVC Tube Settler? Choose the Right Material for Your Project

PP Tube Settler Media

— For Harsh Chemicals, High Temperatures & Outdoor Installations
1. Chemical Resistance for Aggressive Wastewater

Handles electroplating, pickling, and high-salinity wastewater where standard materials fail.
2. High-Temperature Tolerance (up to 150°C)

Maintains structural integrity in heat-treatment sewage environments — no deformation under prolonged thermal stress.
3. UV-Stabilized for Outdoor Use

Built-in anti-UV additives protect performance in open-air facilities under direct sunlight exposure.

Ideal For:
• Electroplating & chemical wastewater treatment
• Pickling & high-salinity industrial effluent
• Open-air sewage treatment plants
• High-temperature process water applications

PVC Tube Settler Media

— Cost-Effective Performance for Municipal & General Industrial Use
1. Lower Upfront Cost — 10–20% Less Than PP

Delivers reliable sedimentation performance at a significantly reduced material cost — ideal for budget-sensitive projects.
2. High Mechanical Strength (E = 1,500–3,000 MPa)

Distributes physical loads evenly across the structure, preventing deformation in high-flow or high-pressure clarifier environments.
3. Broad Chemical Resistance

Resistant to common acids and alkalis — suitable for general municipal and industrial wastewater without aggressive chemistry.

Ideal For:
• Municipal wastewater treatment plants
• Drinking water pretreatment & water reclamation systems
• Underground or shaded treatment stations (no UV exposure)
• Budget-sensitive projects requiring proven long-term durability

Need More Information or Expert Advice?

Request a Quote Ask an Expert

Why Engineers & Procurement Teams Choose Aquasust Tube Settlers

Aquasust takes pride in being a leading high-performance tube settler manufacturer in China, boasting over 12 years of industry experience. We specialize in the production and supply of bulk lamella tube settlers, offering a wide range of dimensions and specifications to meet diverse customer needs.

State-of-the-Art Manufacturing

21,000 m² dedicated tube settler factory with 15 production lines — one of the largest in China. Advanced equipment, mature process, consistent quality across every batch and every order size.

Fully Customized Solutions

Non-standard tube diameter, length, wall thickness, and installation angle? No problem. We engineer tube settler media to your exact clarifier dimensions — modular and scalable for easy future expansion.

Global Supply & 24/7 Technical Support

Serving wastewater treatment projects in 30+ countries. Fast production lead times, reliable worldwide logistics, and dedicated 24/7 engineering support for installation, troubleshooting, and system optimization.
