Ultra Air Suspension Blower

Aquasust Ultra Air suspension Blower Product Introduction

Aquasust Ultra Air Suspension Blower is an innovative aeration blower equipment developed by Aquasust. Leveraging the core technology of hydrogen fuel cell compressors, it focuses on the upgrading and transformation projects of sewage treatment plants and various aeration scenarios, providing an integrated solution covering system design, equipment matching, installation and construction, precision aeration software, as well as the operation and maintenance of the entire system. Integrating three core technologies—ultra-high-speed permanent magnet motor, air-floating hydraulic bearing, and high-efficiency pneumatic design—the product boasts key advantages including 40% higher efficiency, 15-year service life extension, 30% lower energy consumption, full working-condition coverage, and zero maintenance cost. It completely breaks through the technical bottlenecks of traditional blowers and revolutionizes the industry application standards.

Core Technology Highlights

1.Ultra-high speed permanent magnet motor technology

Permanent magnet synchronous motor (PM Motor) is the power source of precisionmanufacturing industry. lt has the remarkable characteristics of high power densityhigh efficiency, small size, and wide application load. The electromagnetic scheme.permanent maanet selection, copper-iron loss, wind friction loss, stator structure, rotorstructure, and control parameters of high-speed motor directly affect product applicationand operation stability.

2. Ultra-high speed air floating hydraulic bearing technology

Adopting a special metal foil composite structure, the pneumatic floating pressure bearing forms an air film based on the Reynolds equation to achieve contactless support for the high-speed rotor. It features high speed, friction-free operation, high temperature resistance, compact size, and clean energy utilization. With a DN value exceeding 4.5 million—far surpassing the 2.5 million of traditional equipment—it boasts stronger load-bearing capacity. Capable of withstanding 50g impact and passing 300,000+ start-stop cycle tests, its service life is 5 times longer than traditional products, fundamentally achieving zero maintenance costs.

3. High-Efficiency Pneumatic Design Technology

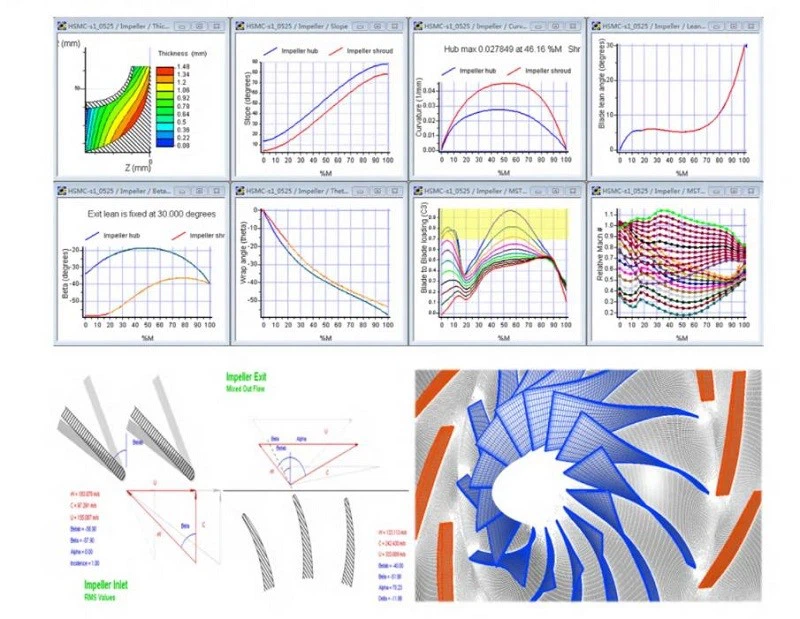

Leveraging over a decade of theoretical design and engineering application experience, we have developed a 3D flow channel impeller model stage, optimizing the matching degree of flow-through components such as impellers, diffusers, and volutes. It balances high aerodynamic efficiency with a wide flow adjustment range (20%-120%). Compatible with fuel cell air compressor heads and validated by automotive-grade tests, it has mature applications in sewage treatment, environmental protection, textiles, refrigeration, and other fields, delivering exceptional compatibility.

Core Product Advantages of Aquasust Ultra Air Suspension Blower

Ultimate Efficiency & Energy Saving
Ultra-Wide Working Condition Adaptability
Superior Reliability & Durability
Compact, Convenient & Low Noise
Intelligent & Convenient Operation

Ultimate Efficiency & Energy Saving

Boasting an ultra-high speed efficiency of 94%, the Aquasust Ultra Air suspension Blower is 40% more efficient than traditional blowers and reduces energy consumption by 30%. It significantly cuts down enterprise operating costs during long-term operation, making it an ideal energy-saving aeration equipment for sewage treatment.
Ultra-Wide Working Condition Adaptability

With an operating temperature range of -40℃ to 85℃, it breaks through the normal temperature operation limit of traditional equipment and can cope with harsh environments such as high temperature, low temperature and high altitude. Featuring a flow adjustment range of 20%-120%, it responds to working condition changes in less than 1 second, achieving seamless adaptation to all application scenarios of industrial aeration and municipal sewage treatment.
Superior Reliability & Durability

The maximum speed reaches 120,000 rpm, which is 3 times that of traditional air suspension blowers. It has a start-stop cycle life of over 300,000 times, 15 times longer than traditional products. Supporting frequent start-stop operations, it meets the continuous operation needs under complex working conditions, ensuring stable performance for sewage treatment projects.
Compact, Convenient & Low Noise

Adopting a modular combined structure, it is small in size, easy to disassemble, assemble and maintain, saving installation space effectively. The air bearing direct connection technology eliminates mechanical wear, and the operating noise is only 75~80db. No additional sound insulation equipment is required, making operation and maintenance more worry-free for industrial and aquaculture aeration scenarios.
Intelligent & Convenient Operation

Supporting mobile network remote control, it enables equipment start-stop, parameter adjustment and status monitoring anytime and anywhere. Equipped with a high-efficiency filtration system (filter element + filter cotton), only regular filter replacement is needed, realizing ultra-low maintenance costs for aeration systems.

Comparison of Technologies

Performance Parameter

Model Specifications

Product Series		AS10	AS20	AS30	AS40	AS50	AS60	AS65	AS80	AS90	AS100	AS130	AS150	AS180
Shaft Power (KW)		10	20	30	40	50	60	65	80	90	100	130	150	180
Boost (kPa)		Inlet flow (m³/min) 20℃, humidity 65%, standard atmospheric pressure (error range ±5%)
40		9	18	24	38	44	48	49	75	70	90	98	130	145
50		8	18	24	36	41	46	47	71	67	84	96	121	139
60		7	17	23	34	38	45	46	67	64	78	94	112	136
70		7	16	21	32	35	43	44	63	61	72	89	103	130
80		6	15	18	29	33	39	41	57	52	66	83	94	121
90		5	12	16	24	30	32	37	47	46	58	76	85	109
100		4	10	15	22	27	28	32	44			60
Outlet Diameter (mm)		DN150					DN200			DN250			DN300
Machine Weight (kg)		200	400				450			600			680
Dimensions (mm)	Length	935	1160				1420			2110	1420	2110
	Width	805	900				1065			1250	1065	1250
	Height	830	1220				1555			1600	1555	1600

Note: The parameters in this table represent design values under optimal blower operating conditions
For actual selection, please consult the manufacturer based on specific project desian reauirements

Dual head - Aquasust Ultra Air Suspension Blower:

Model Specifications

	Dual head	AS40D-090	AS60D-070	AS60D-090	AS100-070	AS130-070
Rated power		40	60	60	100	130
Outlet pressure	Inlet flow (m³/min) 20℃, humidity 65%, standard atmospheric pressure (error range±5%)
0.4		32	48	35	90	98
0.5		31	46.5	35	84	96
0.6		29	45	34.5	78	94
0.7		27	43	34	72	89
0.8		25	38.5	33.5	66	83
0.9		22		32	58	76
1		20		28		60

Note: The parameters in this table represent design values under optimal blower operating conditions.
For actual selection, please consult the manufacturer based on specific project design requirements.

Single head - Aquasust Ultra Air Suspension Blower:

Model Specifications

	Single head	AC20	AC30	AC50
Rated power		20	30	50
Outlet pressure	Inlet flow (m³/min) 20℃, humidity 65%, standard atmospheric pressure (error range ±5%)
0.8		7.25	11	18.5
1		7	10.5	18.5
1.2		6.5	10.25	18
1.4		6.25	10	17.5
1.6		6	9.5	17
1.8		5.5	9	16.5
2		4.5	7.5	15.5
