Product Parameters
Sludge Treatment Capacity
|
Type |
DS Standard Processing Volume |
Theoretical Reference For Sludge Treatment Volume (specific treatment volume is determined by the flocculation effect of sludge and chemicals) |
|||||||
|
Low concentration→High concentration |
2000mg/L |
5000mg/L |
10000mg/L |
20000mg/L |
25000mg/L |
50000mg/L |
|||
|
Sludge Treatment Capactiy |
kg/h |
kg/h |
m³/h |
m³/h |
m³/h |
m³/h |
m³/h |
m³/h |
|
|
AS-NH-301 |
~30 |
~50 |
~15 |
~6 |
~5 |
~2.5 |
~2 |
~1 |
|
|
AS-NH-302 |
~60 |
~100 |
~30 |
~12 |
~10 |
~5 |
~4 |
~2 |
|
|
AS-NH-303 |
~90 |
~150 |
~45 |
~18 |
~15 |
~7.5 |
~6 |
~3 |
|
|
AS-NH-351 |
~60 |
~100 |
~30 |
~12 |
~10 |
~5 |
~4 |
~2 |
|
Mechanical Specifications & Dimensions
|
Model |
Spiral Shaft Specifications |
Mechanical Size |
Net weight |
Operating weight |
||
|
Length (Variable) |
Width (variable) |
Height (Variable) |
||||
|
|
mm*pcs |
mm |
mm |
mm |
kg |
kg |
|
AS-NH-301 |
300*1 |
3100 |
900 |
1800 |
568 |
1200 |
|
AS-NH-302 |
300*2 |
3400 |
1200 |
1800 |
968 |
2030 |
|
AS-NH-303 |
300*3 |
3700 |
1450 |
1800 |
1358 |
2750 |

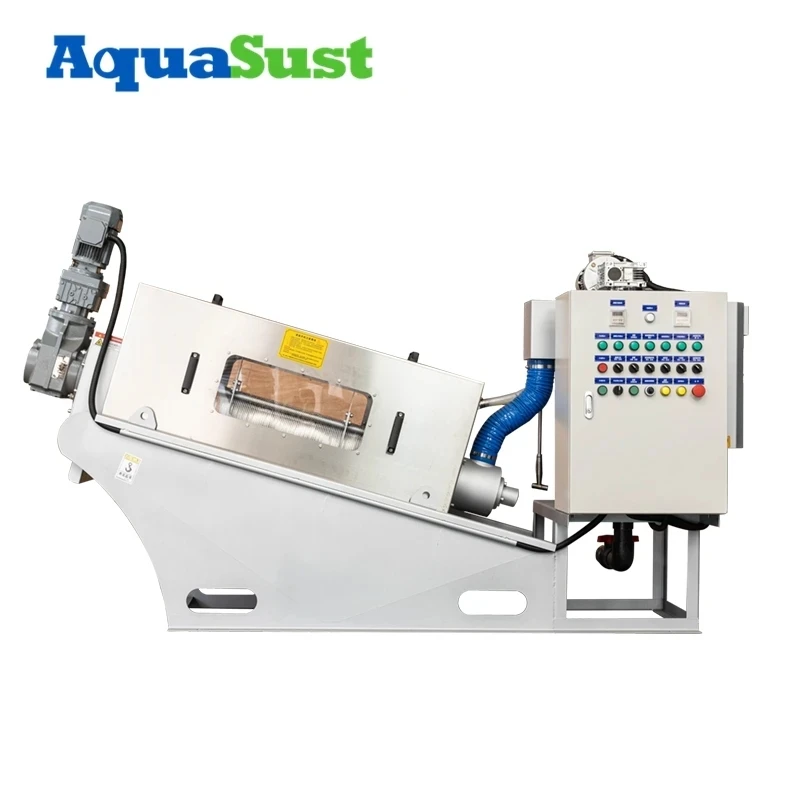

Key Advantages of AquaSust Medium Capacity Sludge Dewatering Machine
AquaSust medium capacity sludge dewatering machines provide a balanced solids-handling range with continuous screw press operation for regular wastewater treatment requirements.
Balanced Solids Throughput
The medium-capacity range covers approximately 30–100 kg DS/h, providing a practical processing range between smaller sludge handling systems and higher-capacity dewatering equipment.
01
Continuous Screw Press Dewatering
The screw press continuously performs sludge conveying, thickening, dewatering, and cake discharge within one process. This configuration supports regular sludge handling in wastewater treatment systems with consistent sludge production.
02
Multiple Capacity Configurations
The range includes AS-NH-301, AS-NH-302, AS-NH-303, and AS-NH-351, providing several capacity levels within the medium-capacity range. Buyers can select a suitable model according to the required solids throughput.
03
Existing System Integration
The continuous conveying and cake discharge process allows the equipment to be incorporated into existing sludge treatment lines. It can be arranged with upstream sludge conditioning and downstream cake collection or disposal equipment.
04
Integrated Screw Press Components
The machine incorporates a screw shaft with a cobalt alloy wear layer, SS304 spray pipe and nozzles, a stainless steel protective cover with PMMA viewing windows, and a Schneider Electric control cabinet. Together, these components support continuous dewatering, automatic cleaning, equipment protection, visual inspection, and electrical control.
05
Common Applications of AquaSust Medium Capacity Sludge Dewatering Machine
AquaSust small capacity sludge dewatering machines are suited to wastewater treatment facilities with relatively low sludge production and limited equipment space, supporting decentralized and small-scale sludge dewatering requirements.
|
|
|
Not Sure Which Sludge Dewatering Machine Fits Your Project?
AquaSust provides small, medium, and high capacity sludge dewatering machines to cover different sludge loads and treatment requirements, with multiple models available for different wastewater treatment conditions and processing capacities.
AquaSust Quality Control Throughout the Production Process
AquaSust maintains quality control throughout production to ensure each sludge dewatering machine meets the specified manufacturing and assembly requirements.
- Raw Material Verification - Incoming stainless steel and other major materials are checked against specified material grades, dimensions, surface condition, and supplier documentation before fabrication.
- Component & Dimensional Inspection - Key components such as the screw shaft, dewatering sections, spray system, covers, frames, and connection points are checked for dimensions, fit, and visible manufacturing defects.
- Welding & Fabrication Inspection - Welded structures and stainless steel components are inspected for weld appearance, continuity, deformation, and fabrication defects.
- Mechanical Assembly Inspection - The screw shaft, drive system, dewatering assembly, spray components, and other connected parts are inspected during assembly to verify alignment, fastening, clearance, and mechanical operation.
- Electrical & Control System Inspection - Motors, control cabinets, electrical connections, sensors, and operating controls are checked during assembly to verify correct connection and functional response.
- Finished Machine Inspection - Each completed sludge dewatering machine undergoes a final inspection covering overall dimensions, appearance, component installation, protective covers, connections, and operating condition before packaging and delivery.
AquaSust Supports You Throughout the Sludge Dewatering Project
AquaSust provides documentation, order coordination, and after-sales support for sludge dewatering equipment projects.
Technical Information & Documentation
AquaSust provides technical and product documentation for equipment evaluation, operation, and maintenance.
Support includes:
- Product catalogues and technical specifications
- Operating and maintenance manuals
- Installation guidance and video resources
- Product documentation for project use
Order & Delivery Support
AquaSust supports customers with order coordination and delivery-related arrangements throughout the purchasing process.
Support includes:
- Order tracking
- Packaging customization
- Delivery coordination
- Order status communication
Warranty & After-Sales Support
AquaSust provides a 1-year warranty for sludge dewatering machines according to its warranty policy.
Support includes:
- 1-year sludge dewatering machine warranty
- Warranty-related technical support
- Troubleshooting support
- Operation and maintenance guidance
FAQ
Q: How should I select a model from the medium capacity range?
A: Model selection should be based on required dry solids capacity, sludge concentration, and actual sludge characteristics. The medium range includes AS-NH-301, AS-NH-302, AS-NH-303, and AS-NH-351, covering approximately 30–100 kg DS/h.
Q: Are the listed sludge treatment volumes guaranteed operating capacities?
A: No. The listed values are theoretical reference figures under different sludge concentrations. Actual treatment capacity depends on sludge characteristics and the flocculation effect of the sludge and chemicals.
Q: What information is needed before confirming the equipment model?
A: Buyers should provide the sludge type, approximate sludge concentration, expected sludge production, required dry solids capacity, and available installation conditions. This information helps AquaSust determine a suitable model.
Q: How much installation space should be reserved?
A: In addition to the machine dimensions, the layout should allow sufficient space for sludge feeding, cake discharge, cleaning, maintenance, electrical connections, and related upstream or downstream equipment.
Q: Can the machine be integrated into an existing sludge treatment line?
A: Yes. The screw press can be arranged with upstream sludge conditioning and downstream cake collection or disposal equipment, allowing it to be incorporated into an existing treatment process.
Q: What does the 1-year warranty cover?
A: AquaSust provides a 1-year warranty for sludge dewatering machines. Warranty-related technical support and troubleshooting are provided according to the warranty policy, while issues caused by misuse, unauthorized modification, improper maintenance, or normal wear are excluded.
