Introduction
Inclined tube settler media, also known as lamella tube settlers, are a high-efficiency clarification solution used in water and wastewater treatment to significantly increase the solid-liquid separation capacity of sedimentation basins. By incorporating a series of small-diameter, steeply inclined tubes, these systems create a large effective settling area within a compact footprint, allowing suspended solids to settle more quickly and reliably than in conventional clarifiers. This technology is widely applied in municipal sewage treatment, industrial wastewater processing, drinking water pretreatment, and specialized applications like oil separation and tailings concentration.
What Is Inclined Tube Settler Media?

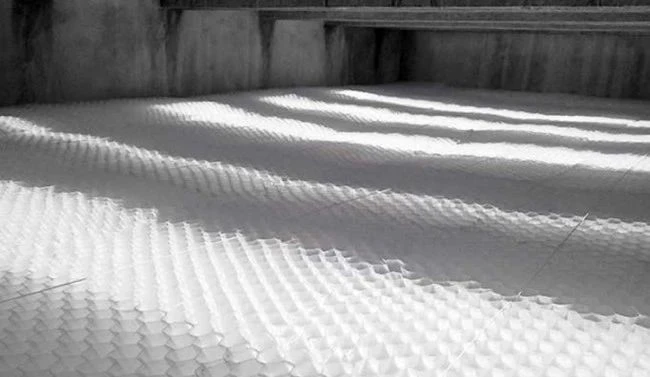

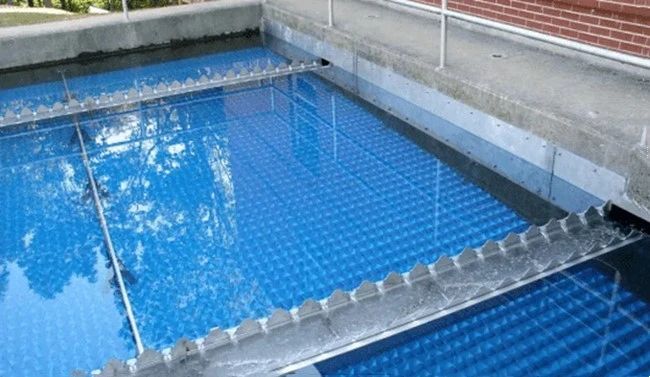

Inclined tube settler media are structured modules consisting of multiple small-diameter tubes arranged in parallel and set at a steep angle, most commonly 60 degrees. These tubes are bundled into blocks installed within a sedimentation basin. As water flows upward through the tubes, suspended solids settle onto the lower wall of each tube under gravity. The steep inclination allows accumulated solids to slide down the tube wall to the bottom of the basin for removal, while clarified water continues upward and exits the top. This simple yet effective design makes inclined tube settler media a practical solution for improving sedimentation efficiency in modern clarification systems.
How Inclined Tube Settler Media Improves Clarifier Capacity?
Inclined tube settler media improves clarifier capacity by increasing the effective settling area
and optimizing solid-liquid separation within the same tank footprint.
Increased Effective Settling Area
Traditional clarifiers rely on a single settling surface, limiting the amount of suspended solids that can settle at one time. Inclined tube settler media divides the clarifier into numerous parallel settling channels, dramatically increasing the effective settling area within the same tank volume. This expanded settling surface allows more particles to separate simultaneously, significantly improving clarifier capacity without enlarging the basin.
Shortened Particle Settling Distance
Instead of traveling the full depth of a conventional clarifier, suspended particles only need to settle a short distance before contacting the inclined tube surface. This shorter settling path reduces the time required for particle separation and enables faster clarification, allowing the system to process higher flow rates while maintaining treatment efficiency.
Continuous Sludge Discharge
As particles settle onto the inclined tube surfaces, gravity causes them to slide naturally down the channels into the sludge collection zone. This continuous self-cleaning process prevents excessive sludge accumulation inside the media, maintains unobstructed flow paths, and supports stable clarifier performance during long-term operation.
Stable Laminar Flow Conditions
The multiple inclined channels divide the incoming water into smaller, more uniform flow streams, helping reduce turbulence inside the clarifier. Stable laminar flow minimizes particle disturbance, allowing suspended solids to settle more effectively and improving overall clarification efficiency, even under relatively high hydraulic loading conditions.
Key Benefits of Inclined Tube Settler Media
Beyond improving clarifier capacity, inclined tube settler media deliver practical advantages
that reduce operational complexity and enhance overall system value.
Because inclined tube settlers significantly increase treatment capacity within existing basin volumes, facilities can often avoid expensive tank expansion projects. The compact, modular design also simplifies transportation and on-site installation, reducing both material and labor expenses compared to constructing new sedimentation basins.
With no moving components and an inclined design that promotes continuous sludge movement, inclined tube settler media require minimal routine maintenance. Their smooth flow channels help reduce sludge accumulation and support reliable long-term operation with less maintenance effort.
Inclined tube settler media improve sedimentation through gravity and hydraulic flow rather than mechanical equipment. This passive operating principle simplifies the clarification process, reduces system complexity, and helps support efficient, cost-effective water treatment.
The multiple inclined channels help distribute hydraulic flow more evenly throughout the clarifier, reducing flow disturbances and maintaining stable settling conditions. This allows the system to deliver consistent clarification performance under changing flow rates and solids loading.
The modular structure allows inclined tube settler media to be configured for a wide range of clarifier designs and installed with minimal disruption. Additional modules can also be added as treatment capacity requirements grow, providing a flexible solution for both new projects and future upgrades.
How to Choose the Right Inclined Tube Settler Media
• Material Selection – Choose PVC or PP based on water temperature, chemical compatibility, and the operating environment.
• Tube Dimensions – Select the appropriate tube size and inclination angle to match the clarifier design and treatment capacity.
• Water Quality – Consider suspended solids concentration, particle characteristics, and flow conditions to achieve optimal settling performance.
• Installation Requirements – Ensure the media configuration fits the available installation space while allowing easy assembly and future maintenance.
• Manufacturer Expertise – Work with an experienced manufacturer that offers reliable product quality, customization options, and professional technical support.
Conclusion
Inclined tube settler media is a proven solution for improving clarifier capacity, enhancing sedimentation efficiency, and optimizing the performance of water treatment systems. As a professional manufacturer, Aquasust provides high-quality PVC and PP inclined tube settler media with customizable specifications to meet the requirements of municipal, industrial, and other applications. Backed by reliable manufacturing and technical expertise, we are committed to helping customers achieve efficient and dependable clarification solutions. Contact us today to discuss your project requirements and find the right inclined tube settler media for your application.
